打板臺
應用名稱：打板臺、分解組合臺、縱向分解組合臺、橫向分解組合臺、10'橫向升降分解組合臺 、10'縱向升降分解組合臺
類型
航空貨站貨物打板、拆板作業
應用領域
機場航空貨站
產品介紹
用于 ULD、航空集裝板（單元載荷設備）的打板拆板作業。它由一臺剪叉式升降機和一個運輸平臺組成。剪叉式升降機可進行高度調整，以彌合卡車裝載層與系統層之間的高度差。 系統高度 508 - 1 608 毫米 可用尺寸 10英尺 NEP 可用甲板 (電機驅動）滾輪甲板 可用甲板
駛過式甲板 、萬向球甲板 、 蓖麻輪甲板、萬向輪甲板
選項
操作員平臺
重型上升輥隔離柵
側移
稱重系統
主要優勢 安全性 高效 防止損壞 提高生產率
載重： Q≥ 6.8t,V
輸送速度：≥ 18m/min,V
升降速度 ≥ 3m/min,
外形尺寸W× L=3470× 3300mm、W× L=2470× 3910mm
升降行程
H=2100mm(-2200mm～+508mm)
帶稱重裝置(具有以太網接口及打印功能)
Palletizing Table
Application Name: Palletizing Table, Disassembly and Assembly Table, Vertical Disassembly and Assembly Table, Horizontal Disassembly and Assembly Table, 10' Horizontal Lifting and Disassembly Assembly Table, 10' Vertical Lifting and Disassembly Assembly Table
Type
Aircraft cargo station cargo palletizing and depalletizing operations
Application Field
Airport aviation cargo station
Product Introduction

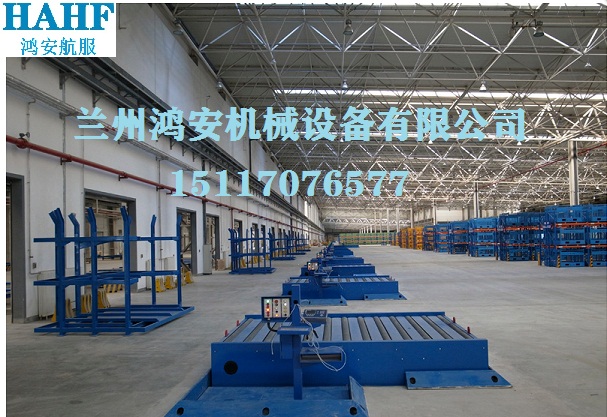

Used for palletizing and depalletizing operations of ULDs and aviation container pallets (Unit Load Devices). It consists of a scissor lift and a transport platform. The scissor lift can adjust its height to bridge the height difference between the truck loading level and the system level. System height range: 508 - 1,608 millimeters. Available sizes: 10-foot NEP, available decks (motor-driven) roller decks, pass-through decks, castor decks, omnidirectional wheel decks.
Options
Operator platform
Heavy-duty roller isolation gate
Sideways movement
Weighing system
Main Advantages
Safety, efficiency, prevention of damage, increased productivity
Load Capacity: Q≥ 6.8t, V
Conveying Speed: ≥ 18m/min, V
Lifting Speed: ≥ 3m/min,
Dimensions W× L=3470× 3300mm, W× L=2470× 3910mm
Lifting Stroke H=2100mm (-2200mm～+508mm)
With weighing device (includes Ethernet interface and printing function)
